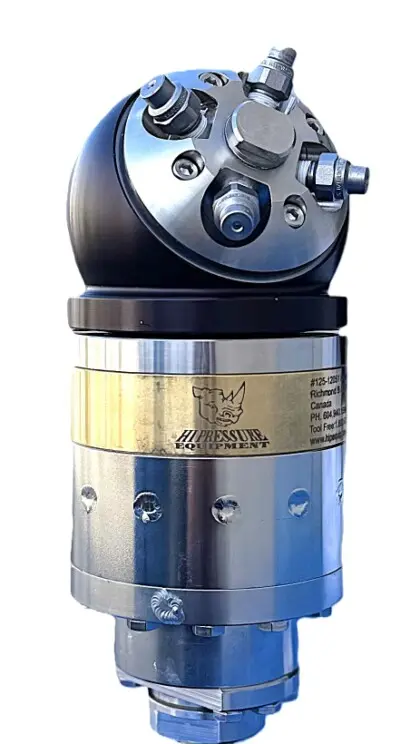

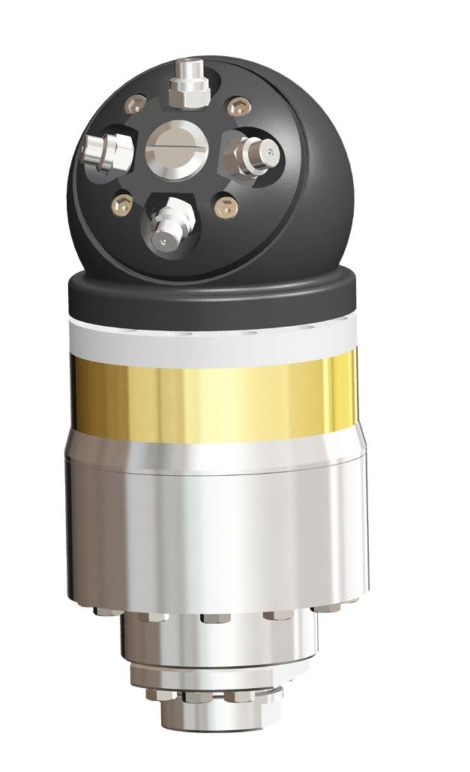

Bolondi SW060A-CF

3000 PSI Waste Bin Cleaning Head
Water Powered Self Spinning

  • Heavy-duty cleaning head
  • All aisi 316 stainless steel and bronze
  • Larger more advanced turbine
  • Variable 4 speed diffuser
  • Includes NBR high temp, high pressure seal kit

aisi 316 + bronze
15 to 60lt/min
4 to 16 us gpm
200 bar / 3000 psi
90°C. - 194°F.
Spinning speed:
Cleaning sector:
2 to 4  1/8 MEG
Complete cycle:
150 Rotations
Complete cycle time:
15 Sec.
5.5 KG - 12.1 Lbs.
SW060A-CF Video
Bolondi High Pressure Filter

Protect Your Bolondi Cleaning Head

Filtering is your best defence against premature cleaning head wear, and preventing downtime.
As a hot water coil goes through its heating and cooling cycles.
The coil will release small metal particles called slag.
These particles must be filtered out prior to entering the cleaning head.
If these particles are not filtered out.
They will get lodged into a the cleaning heads diffuser.
The turbine will stop and the cleaning head will stop rotating.

The Bolondi filter is all stainless steel construction (except Teflon O-ring).
Resists corrosion from waterborne materials.
Heavy duty screen support prevents screen collapse for maximum performance.

Maximum operating pressure is 5000 PSI

Protect Both Your Hot Water Heater & Bolondi Cleaning Head

Scaltrol’s water scale solutions were designed to control mineral scale from water sources that cause corrosion and  decrease the efficiency of your appliances and plumbing.
Without a preventative scale control solution, your appliances eventually become clogged with scale buildup – sometimes past the point  of fixing.
Since most water sources are saturated with large amounts of  minerals, including calcium carbonate (lime scale), calcium sulfate, iron, and manganese, the Scaltrol units are installed at the water supply.
The concentration of minerals depends on your environment, based on  rock formation, pH level, oxygen content, and temperature.
Any increase or decrease in temperature can cause minerals to precipitate (i.e., form scale).

Preventing scale formation

To counteract mineral build-up, Scaltrol scale control units dispense a measured amount of polyphosphate which deposits a microscopic film to all surfaces. The mineral molecules, which have a positive charge, are then attracted to – and held in suspension by – the negative charge of the polyphosphate, which acts as a sequestrant. Since the mineral molecules are no longer able to bind together, scale cannot form.

Bolondi Cleaning Heads
Thanks to a programme of product optimisation, resulting from a careful and meticulous client feedback process, the 1980s and 1990s witnessed the development, by the Officina Meccanica Bolondi Ivano, of a large number of technical innovations in the washing head production sector.

A comprehensive range of low and high-pressure products designed to meet the needs of firms looking for products that are perfectly suited for sanitising and cleaning, from the smallest of containers to the largest of spaces.

Particular care and attention has been devoted to the aspects of integration with industrial systems and machines, above all in the food, pharmaceutical, chemical, wine producing, transportation sectors, and in the urban and building cleaning industry, by using materials that are compatible with a large variety of products.

It is impossible to overlook the detailed finishing touches that are applied to each and every aspect, hallmarks of truly innovative designs, and that are veritable technological treasures in each of the individual components.

Food Industry

Totes and IBCs
55 Gallon Drums
Portable Restrooms
Waste Bins
Wheelie Bins
Car Washes
Parts washers
Tank Cleaning
Fuel Storage Tanks
Systems and Machines for construction
Concrete Mixers
Fermentation Tanks
Silo Cleaning
Stainless Steel IBC
Industrial and Road Haulage Vehicles

More than 30 years of experience in cleaning heads
Comprehensive range of low and high pressure heads
Suitable for: chemical-pharma-cosmetic-food-beverage-transportation-urban and building industry
Certificate availbale: Atex, certificate of material, Rhos and Ped certificate, FDA certificate

Features & Benefits
Better cleaning result
Reduced cleaning time
Reduced water usage
Reduced working cost

Bolondi products are compliant with:
RoHS Certification RoHS 2002/95/CE
PED Certification PED 97/23/CE
ISO Certification ISO 9001: 2008
ATEX Certification Atex
