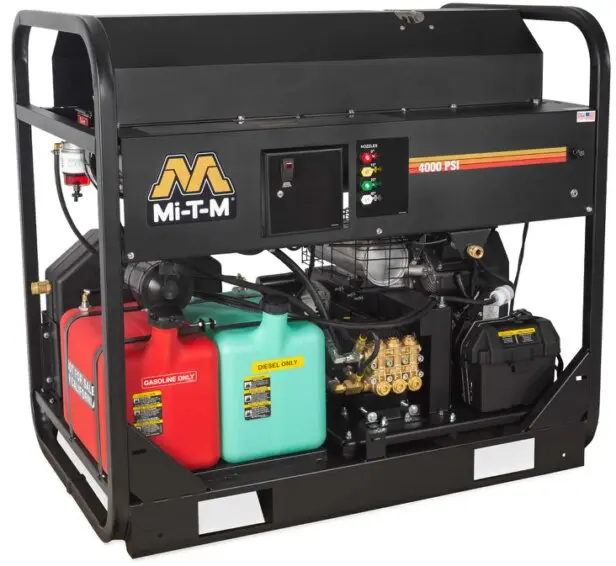

Mi-T-M GAS ENGINE
HOT WATER SKIDS
- Diesel Fired Burner
- Powder Coated EHD Frame
- General TSF Series Ceramic Plunger Pump
- Stainless Steel Control Panel & Coil Wrapper
- Diagnostic LED Lights to Check Burner Switch
- Pressure Switch and Adjustable Thermostat
- Sch. 80 Heating Coil
- 50’ R2 High Pressure Hose
- Trigger Gun Control w/4’ Lance
- Quick Coupled Color Coded Spray Tips
- Poly Battery Box - Battery NOT Included
- Hour Meter
- Pressure Gauge
- EPA/CARB Approved
- 10 Gallon Gas Tank
- 10 Gallon Diesel Tank
- Plumbed for Remote Tank Inlet w/Bypass to Tank
- Pressure Relief Valve
- Enclosed Belt Guard
- Easy to use Belt Tensioner
- Heavy Duty Unloader
- Oil Drains on Engine and Pump
- 115 volt burner
- 2900 Watt Generator
- DIMENSIONS: 50” L x 34” W x 46”
MODEL | GPM | PSI | ENGINE | BTU | PUMP | WEIGHT |
HS-3506-1MGH | 5.6 GPM | 3500 | Honda GX630 | 471,800 | General TSF Series | 854 LBS |
HS-3008-1MGK | 7.8 GPM | 3000 | Kohler CH730 | 513,800 | General TSF Series | 878 LBS |
