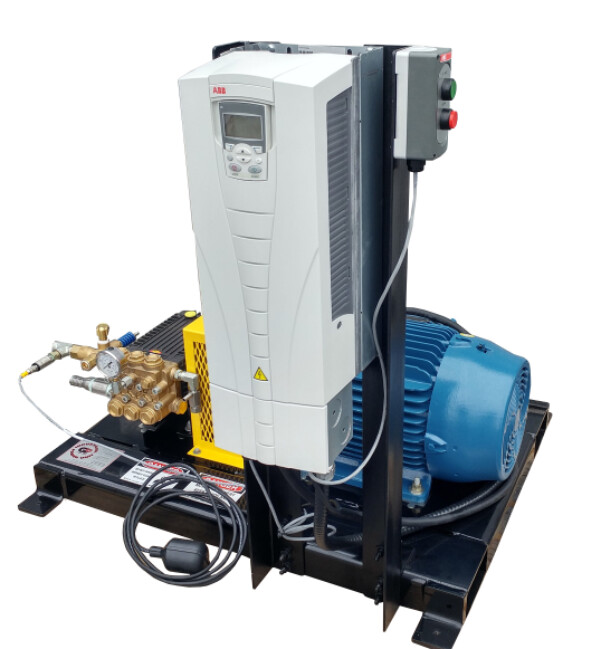

HPE Model ES1518VFD

1500 PSI @ 18 GPM
Variable Speed Power Unit

The ES2010VFD is a variable speed multi nozzle cleaning system. There is a transducer on the manifold that will turn the system on after being powered up.  As soon as the gun trigger is pulled the system will start and run.  If only one gun is being used the system will only run the speed needed for that one gun and then when the second trigger is pulled the system will speed up for the other gun.
Once the guns are closed the system will slow to a stop.
There is a remote on/off button sent with the system that will allow the end user to power up the system and shut off the system without touching the VFD.

Multiple shut-off configurations and discharge
pressures are available.

Motor
25HP 208-230-460-575V/3Ph
Pump
Triplex Ceramic Plunger
Flow:
18 us gpm
Pressure:
138 bar / 1500 PSI
Filtration:
50 micron
Water tank:
378 litre / 100 us gal
Weight
350 Lbs.

Bolondi Cleaning Heads
Thanks to a programme of product optimisation, resulting from a careful and meticulous client feedback process, the 1980s and 1990s witnessed the development, by the Officina Meccanica Bolondi Ivano, of a large number of technical innovations in the washing head production sector.

A comprehensive range of low and high-pressure products designed to meet the needs of firms looking for products that are perfectly suited for sanitising and cleaning, from the smallest of containers to the largest of spaces.

Particular care and attention has been devoted to the aspects of integration with industrial systems and machines, above all in the food, pharmaceutical, chemical, wine producing, transportation sectors, and in the urban and building cleaning industry, by using materials that are compatible with a large variety of products.

It is impossible to overlook the detailed finishing touches that are applied to each and every aspect, hallmarks of truly innovative designs, and that are veritable technological treasures in each of the individual components.


Applications
Food Industry
Dairy
Brewing
Wine

Totes and IBCs
55 Gallon Drums
Portable Restrooms
Waste Bins
Wheelie Bins
Transportation
Car Washes
Parts washers
Tank Cleaning
Fuel Storage Tanks
Systems and Machines for construction
Concrete Mixers
Fermentation Tanks
Silo Cleaning
Stainless Steel IBC
Industrial and Road Haulage Vehicles



Products
More than 30 years of experience in cleaning heads
Comprehensive range of low and high pressure heads
Suitable for: chemical-pharma-cosmetic-food-beverage-transportation-urban and building industry
Certificate availbale: Atex, certificate of material, Rhos and Ped certificate, FDA certificate

Features & Benefits
Better cleaning result
Reduced cleaning time
Reduced water usage
Reduced working cost

Certifications
Bolondi products are compliant with:
RoHS Certification RoHS 2002/95/CE
PED Certification PED 97/23/CE
ISO Certification ISO 9001: 2008
ATEX Certification Atex
