Bolondi FV-20-5800 PSI 5800 PSI Tank Cleaning Machine Water Powered Self Spinning | |
Material: | Aluminium or INOX AISA 316 |
Flow: | 15 - 60 l/min 4 - 15.85 us gpm |
Pressure: | 5 - 400 bar 70 -5800 psi |
Temperature: | 90°C. - 194°F. |
Filter: | No |
Application: | cleaning sector 360° |
Nozzles: | 2 - 4 x 1/4" NPT |
Complete cycle: | 61 Rotations |
Complete cycle time: | 2 - 12 Min. |
Weight Aluminium | 5.5 KG - 12.2 Lbs. |
| Weight INOX AISA 316 | 10.5 KG- 23.15 Lbs. |

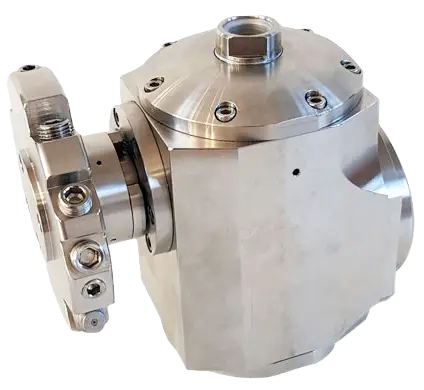

Volumetric Rotating Head for Uniform Cleaning of Tanks and Tanker Trucks
The FV020 Volumetric Rotating Head is designed for users who require extremely uniform and controlled cleaning, even on medium and large tanks and tanker trucks. It is the ideal solution when the objective is not only to wash surfaces but to ensure complete residue removal, reducing the risk of untreated areas and inconsistent results.
Designed for demanding industrial environments, the FV020 is widely appreciated in the chemical, wine production, and transport sectors, where the reliability of the cleaning process and the repeatability of results are essential.
Why choose the FV020
The main advantage of the FV020 is its ability to deliver perfectly uniform Volumetric cleaning from the beginning to the end of the cycle.
This is made possible by the Self-braking system with Silicone damping oil, which maintains a constant rotation speed regardless of operational variations.
The result is homogeneous cleaning with no overlapping areas and no untreated zones, drastically reducing the risk of residual contamination.
It is the ideal choice for users who:
- require Dense spray coverage with consistent spray trajectories
- need precise cleaning control on complex internal surfaces
- operate with water recirculation systems to optimize consumption and process efficiency
Concrete advantages for the operator
- Consistent cleaning uniformity across the entire internal surface
- Stable rotation speed throughout the cleaning cycle
- High reliability even in Heavy-duty applications
- Effective residue removal thanks to controlled Spray pattern paths
- Easy integration into existing cleaning systems
Main technical features
- Close Spray pattern paths ensuring full internal coverage
- Speed control through Silicone damping oil
- Operating pressure up to 400 bar
- Flow rate up to 200 l/min
- Body made of anodized aluminum
Installation and certifications
- The FV020 can be easily integrated into existing cleaning systems and does not require complex installation procedures.It is designed to ensure long service life and requires only standard maintenance of wear components.Available on request:
- CE certification
- ATEX certification
If you are looking for a Volumetric Rotating Head capable of delivering reliable, uniform and repeatable cleaning performance, the FV020 is a proven and robust solution.Our Bolondi team is available to support you in selecting the most suitable configuration or developing customized solutions based on your specific application requirements.
