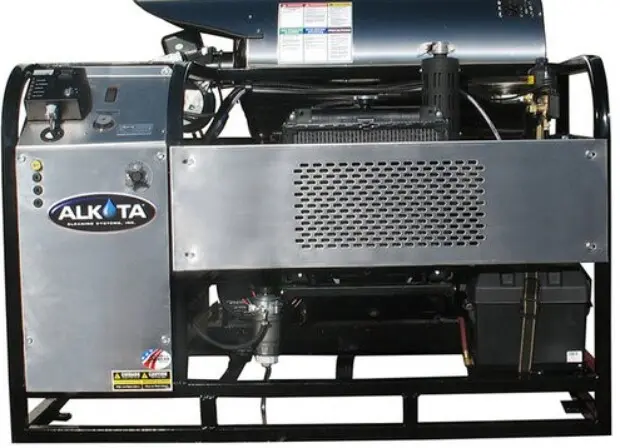

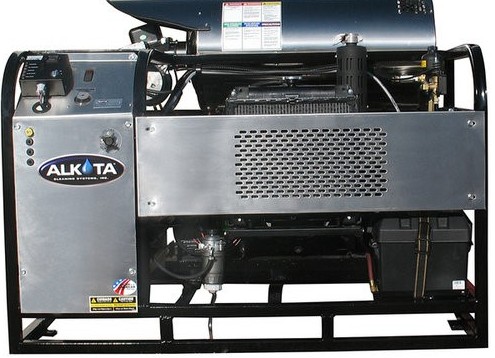

DIESEL ENGINE
HOT WATER SKIDS
Kubota Diesel Powered
- Diesel Fired Burner
- Powder Coated EHD Frame
- General TSF Series Ceramic Plunger Pump
- Stainless Steel Control Panel & Coil Wrapper
- Diagnostic LED Lights to Check Burner Switch,
- Pressure Switch and Adjustable Thermostat
- Sch. 80 Heating Coil
- 50’ R2 High Pressure Hose
- Trigger Gun Control w/4’ Lance
- Quick Coupled Color Coded Spray Tips
- Poly Battery Box - Battery NOT Included
- Hour Meter
- Pressure Gauge
- 30 Gallon Diesel Tank
- Plumbed for Remote Tank Inlet w/Bypass to Tank
- Pressure Relief Valve
- Enclosed Belt Guard
- Easy to use Belt Tensioner
- Heavy Duty Unloader
- Oil Drains on Engine and Pump
- 115 volt burner
- 3000 Watt Generator
- DIMENSIONS: 54” L x 54” W x 46” H
- Weight 1200 lbs.
MODEL | GPM | PSI | ENGINE | BTU | PUMP |
| DS5407K | 5 GPM | 3500 | Kubota D902 | 550,000 | TSF2021 |
DS8307K | 8 GPM | 3500 | Kubota D1305 | 690,000 | TSF2421 |
